D9010 1

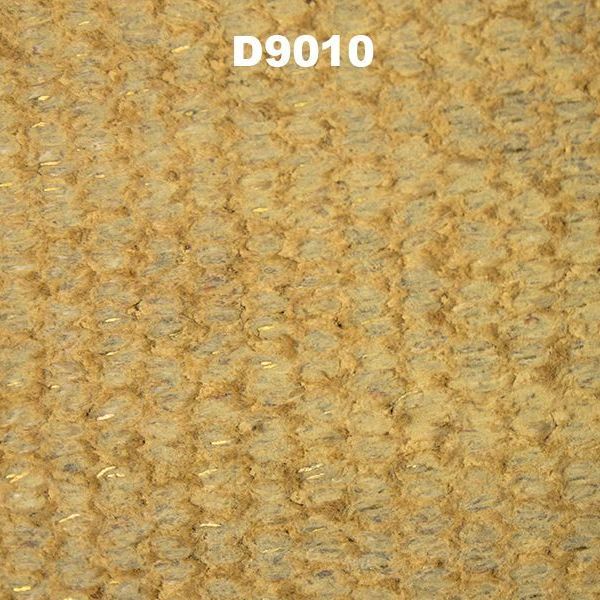

Engineered for superior performance, D9010 1's composite woven lining is made from finely carded yarns reinforced with metallic wire for enhanced strength and durability. Featuring a unique 3-axis construction and high-performance resin system, this dense, rugged material delivers excellent resistance to heat, wear, and compression under heavy loads—making it ideal for demanding industrial and automotive applications.


Product Features:

  • Available Standard Sizes:

    • 13" Widths
    • Thickness : .0125 to 1.250
    • Length: 25'
    • Specific Gravity: 1.4 - 1.6
    • Apparent Density: pounds/in3  0.0578

  • Properties:

    • See Product Data Sheet "D 9010-1 for Operation in Oil".

  • Current Applications:

    • Industrial Brake Linings
    • D 9010 1 meets the applicable requirements for CID A A 52522
    • D 9010 1 is aptly suited for light to heavy duty service with quality steel and cast iron mating surfaces in winches, cranes, hoists, etc.
    • D 9010 1 is NOT recommended for use with copper, aluminum, or other soft materials.

  • Product Information:

    • Product - FLAT SHEET
    • Unit - EA
    • Description - 1/4'' x 26'' x 26''
    • Number - D9010-1
    • QTY on HandPRICE- FlatSheet57250130.95
