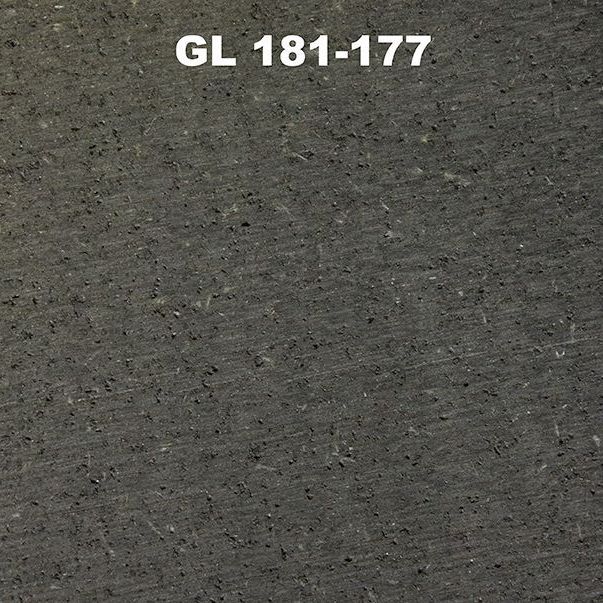

GL181-177
GL181-177 is a high-performance, non-asbestos semi-cured molded friction material designed for applications requiring reliable stopping power, excellent stability, and long-lasting wear resistance. Engineered with a fabric-based phenolic formulation (Material 1177), this product delivers consistent friction characteristics across a range of operating conditions.
Supplied in a semi-cured state, GL181-177 offers the flexibility of post-forming, allowing it to be shaped into custom geometries or configurations before final curing. This makes it an ideal choice for manufacturers and engineers who need a friction material that can adapt to complex designs or specialized brake and clutch components.
Product Features:
Mechanical Properties:
- Density, GM/CC: 1.35
- Tensile Strength, PSI, Lengthwise 13,200
- Tensile Strength, PSI, Crosswise 9,500
- Compressive Strength, PSI, Flatwise 37,000
- Flexural Strength, PSI, Lengthwise 22,000
- Flexural Strength, PSI, Crosswise 18,000
- Impact Strength, ft lbs./sq. inch 2.3
- Rockwell Hardness, M Scale 103
- Bond Strength, lbs. 2,000
- Coefficient of Friction 0.17
Electrical/ Physical Properties:
- Dielectric Strength, Kilovolts 35
- Heat Resistance, 'F, Short Time 275
- Heat Resistance, 'F, Continuous 225
- Water Absorption %, 24 hours 1/16"
Current Applications:
- Industrial Brake Linings
Why Champion?
Advanced Manufacturing Capabilities:
Our specialized equipment can produce specialized molds and laminated semi-cured slabs, enabling the creation of thicker, more precise drum parts that meet your exact requirements.
Custom Solutions:
Need a specific configuration? Our experienced staff works directly with you to develop friction solutions tailored to your application needs.
